Overview:Mobile hydraulic lift is a kind of hydraulic mechanical equipment used for high altitude work. It mainly uses oil cylinders and pumping stations for power transmission. Its shear and fork mec

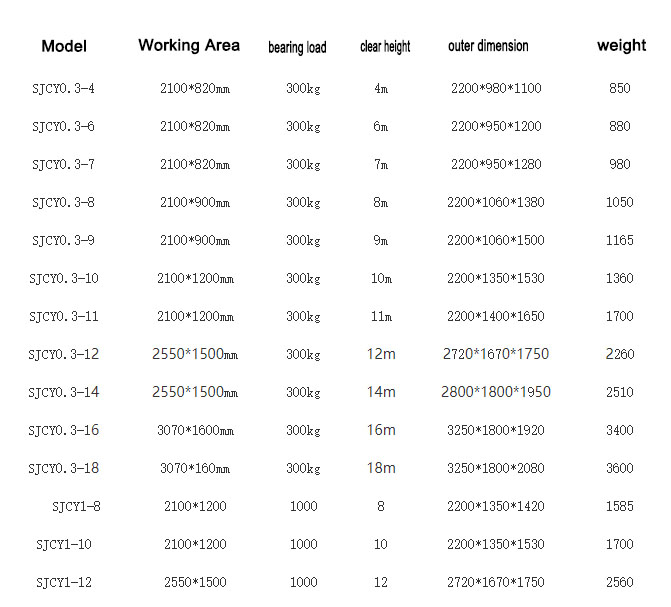

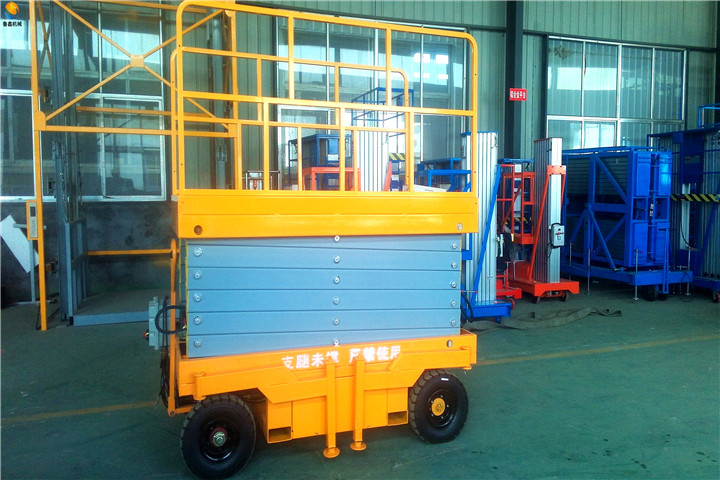

Mobile hydraulic lift is a kind of hydraulic mechanical equipment used for high altitude work. It mainly uses oil cylinders and pumping stations for power transmission. Its shear and fork mechanical structure ensures the stability in the lifting process, the wide lifting operation platform and the high carrying capacity, so that the altitude operation range is wider, and suitable for many people to work at the same time. Lift power is divided into 220V or 380V power supply, diesel engine, or battery power source, special environment can also use explosion-proof hydraulic pump station and explosion-proof electrical appliances. 4-22 meters higher, load 0.3 to 3 tons. The pump station and cylinder produced by Hengyu Hydraulic are used. The platform table is made of non-slip insulated fastenings, which are non-slip, insulated and safe. Please feel free to use them. It makes high-altitude work efficient and safe.
1, lift table plate bending, bottom frame and shear fork structure, using high-strength rectangular pipe;
2, the lifting platform contact surface is large, the lifting is stable, the shaking is small;
3, lift hydraulic cylinder, the use of external explosion-proof valve, to prevent the fracture of tubing, platform stall decline, durable;
4, the hydraulic system adopts high quality high pressure tubing; Lift special hydraulic pump station, equipped with emergency descent valve, lifting platform power can be manually controlled descent, built-in relief valve, can prevent the upward movement of the system pressure is too high, play the overload protection function;
5, mobile elevator using inflatable rubber tires, reduce the vibration of mobile;
6, electrical overload protection, lack of phase protection and other safety protection functions;
7, the lifting platform adopts upper and lower electric control, the control button box is equipped with emergency stop button, to ensure property and personal safety, each operation part uses 24V safety control voltage.
